RJ-45 Interface. 8 10/100/1000Mbps Gigabit Ethernet ports. Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T.
Supports auto MDI/MDI-X function. Switching. Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation.
Features Store-and-Forward mode with wire-speed filtering and forwarding rates. IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation. Integrated address look-up engine, supporting 4K absolute MAC addresses.
9K Jumbo packet size. Power saving ability for Green networking. Automatic address learning and address aging.
Supports CSMA/CD protocol. Hardware. Made of metal, desktop size and wall-mount design.
LED indicators for system power, per port 1000 & Link / Act. 5V DC, 1A external power adapter. FCC, CE Class B compliant.

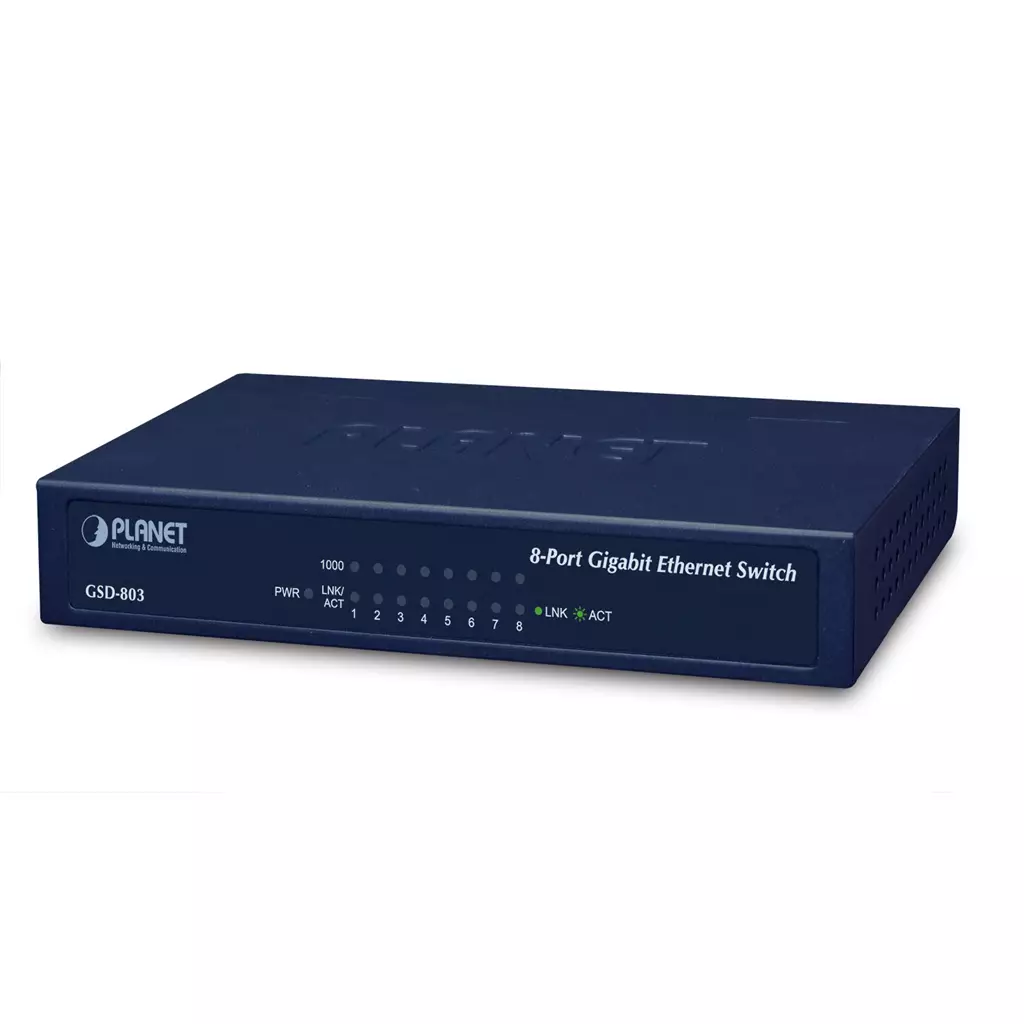

Optimal Solution for Energy Saving and Gigabit High Performance. PLANET Green Networking Switch-GSD-803 is an ideal solution in line with the energy-saving trend worldwide. The GSD-803 is an 8-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance.
It is specially designed for home networking, SOHOs and enterprises.. Energy Saving. The GSD-803 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.. (1) Hibernation Link Down power saving.
