Ultra compact form factor. Wall Mountable. Fanless (Silent) Operation.
Ultra-low power consumption. Can be powered by USB port on PC or router (requires optional USB/DC cable 'HVUSB1'). 802.3az Power Saving.

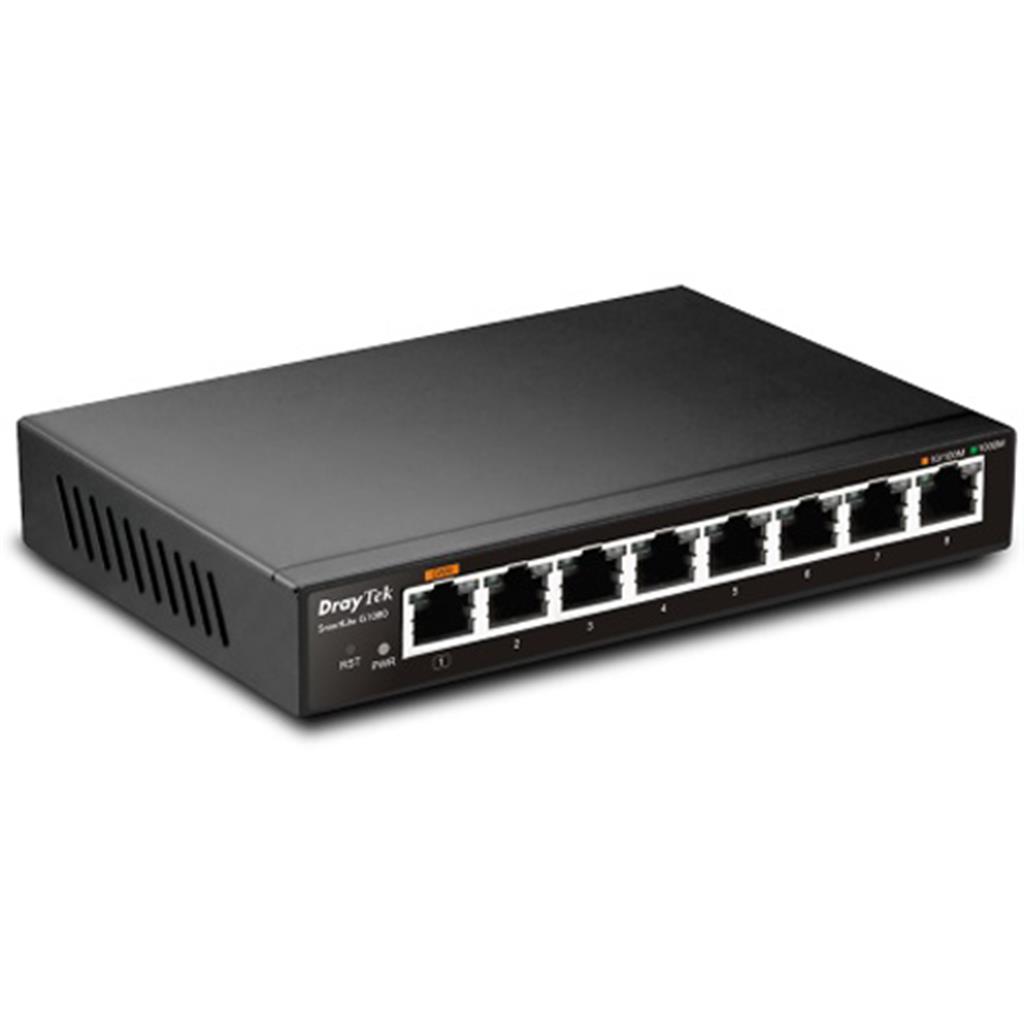

QoS for Application traffic prioritisation. The VigorSwitch G1080 is a small, high-performance Gigabit smart switch designed for small and medium business networks that require simple network management, with support for VLANs, QoS and Link Aggregation (increases uplink speed for high data volume applications).. The G1080 is an ulta-low power device, consuming under 1A, even when fully loaded.
It is powered by an AC/DC adaptor (included). It's a low cost device, ideal for adding additional Ethernet ports to your router with a small footprint.. The VigorSwitch G1080 can be managed directly through its web interface, or can be installed in conjunction with a compatible Vigor router to expand the router's network, with the VigorSwitch G1080 managed and monitored through the DrayTek Vigor router's web interface..
Power from USB. If you have limited space or power sockets, the VigorSwitch G1080 can also be powered by USB - perhaps the USB port on PC or one on your DrayTek Vigor router. Central Management.
The DrayTek VigorSwitch G1080 can operate in standalone mode and be managed through its web interface or, if you need to manage and monitor the switch remotely, or have several DrayTek VigorSwitches to administer, you can centrally manage VigorSwitches on a site from the DrayTek router which they are physically connected to.. With DrayTek Central Switch Management, connected VigorSwitches can be monitored, managed and provisioned simply by accessing the router's web interface, either locally or from across the Internet..
See the 'Central Management' tab for more information on the capabilities of Central Switch Management.. Network Segmentation with Port-based & Tag-based VLAN. The DrayTek VigorSwitch G1080 can separate network segments using IEEE 802.1q VLANs, with both Tag-based and Port-based VLANs:.
Tag-based VLAN. This type of VLAN can be used to segment networks using a single network link between the DrayTek Vigor router with multiple subnets (VLANs) and the VigorSwitch G1080, with different ports being assigned to each of the router's VLANs.. In this example, there are three VLANs being passed through the VigorSwitch G1080's first port, providing network ports to each of these networks.
