Low-profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements. Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included. Open wall plate allows for flexible positioning around power and data wall boxes.
Supports display mounting patterns up to 550 x 450 mm. Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen. Easy access magnetic quick-store release pullcords.
Kickstand for easy access to power and signal connections. Theft deterrent security options (not included). UL and TUV safety standards compliant.

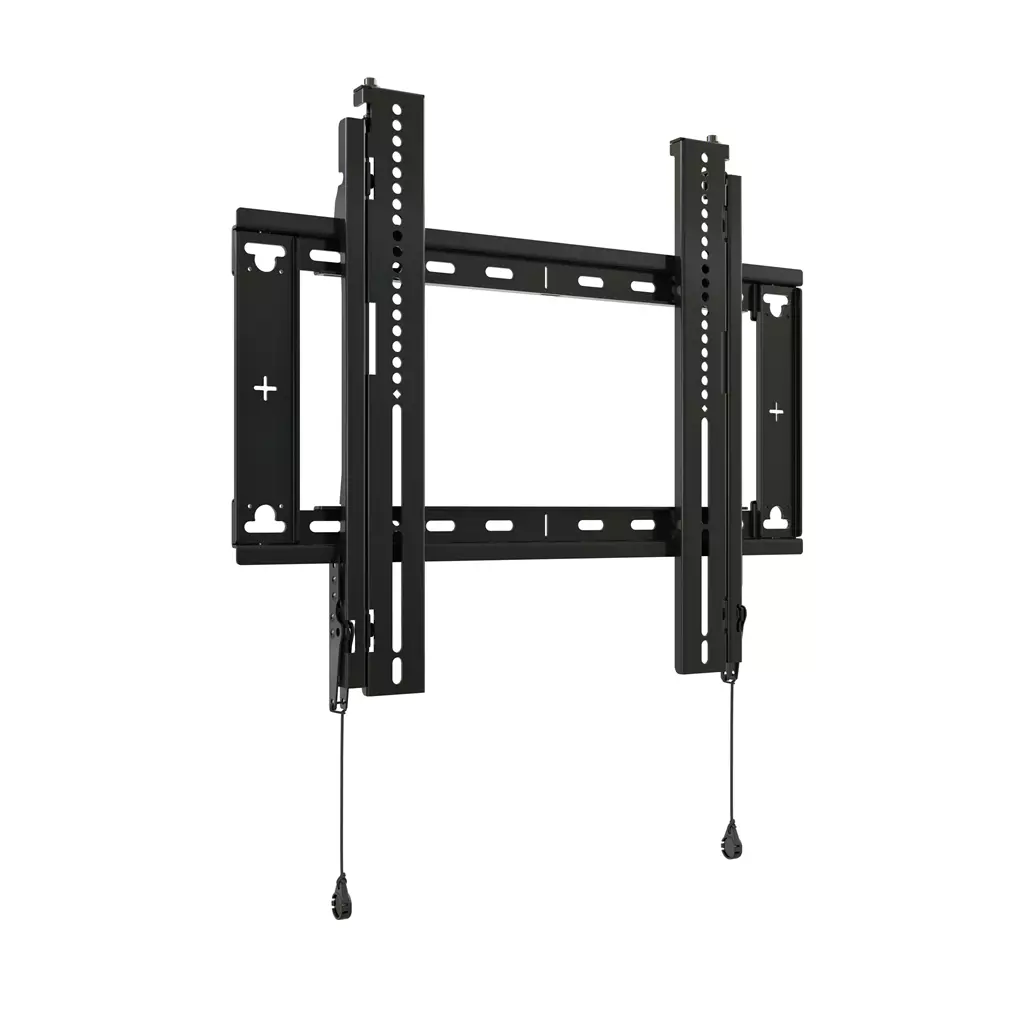

The Fit series RMF3 is a medium fixed display wall mount for 32” to 65” typical display sizes and supports mounting patterns up to 550 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.. Mounting.
Maximum weight capacity. 56.7 kg. Minimum screen size.
81.3 cm (32"). Maximum screen size. 165.1 cm (65").
Mounting type. Wall. Maximum VESA mount.
550 x 450 mm. Number of displays supported. 1.
