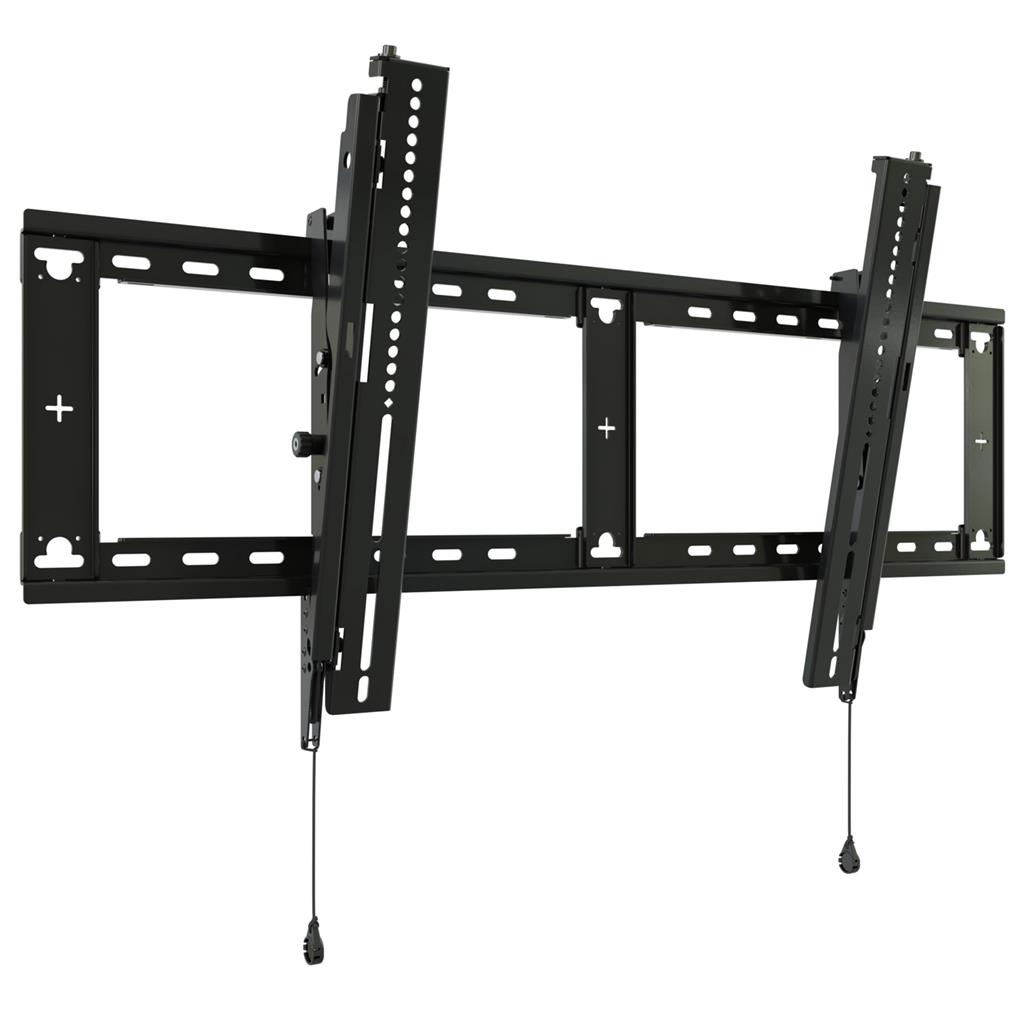

Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements. Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included. Display can be tilted up to 12° to set the optimal viewing angle.
Open wall plate allows for flexible positioning around power and data wall boxes. Supports display mounting patterns up to 915 x 450 mm. Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen.
Easy access magnetic quick-store release pullcords. Kickstand for easy access to power and signal connections. Theft deterrent security options (not included).

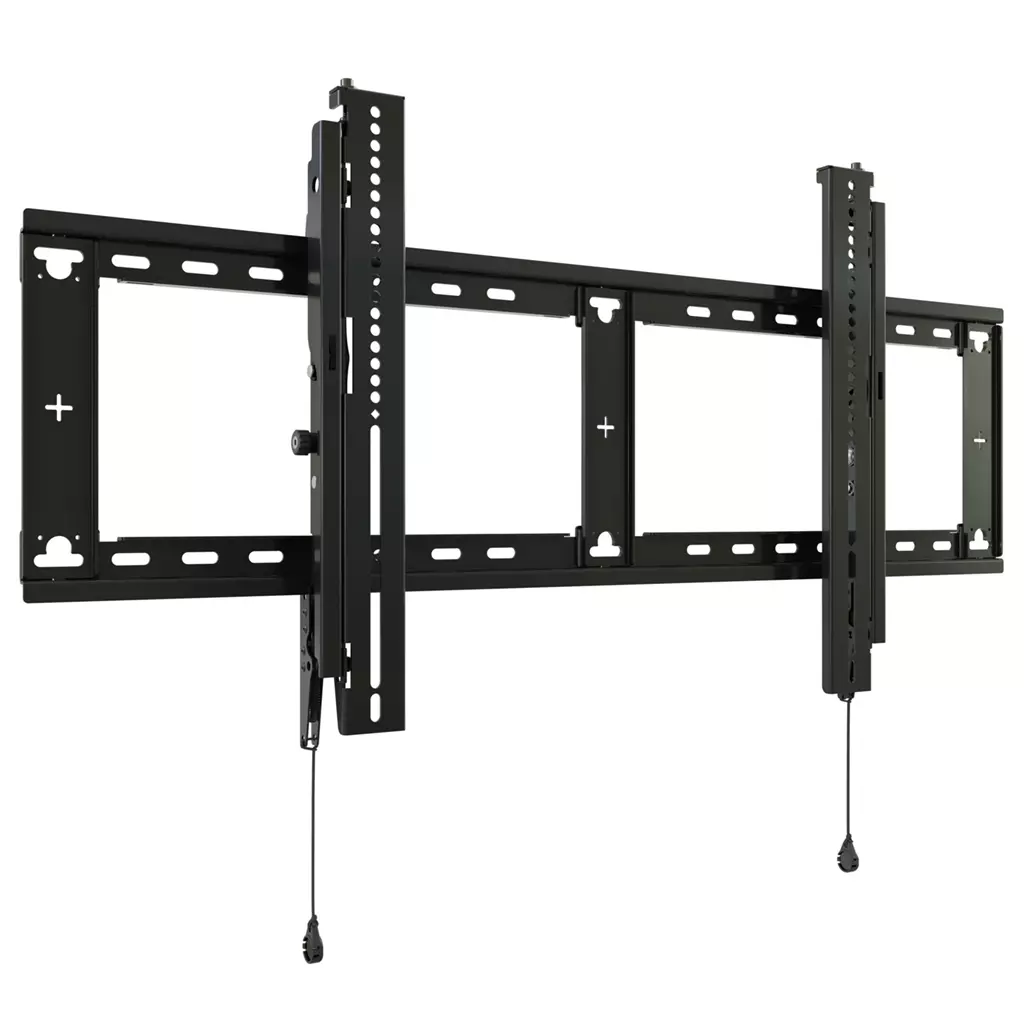

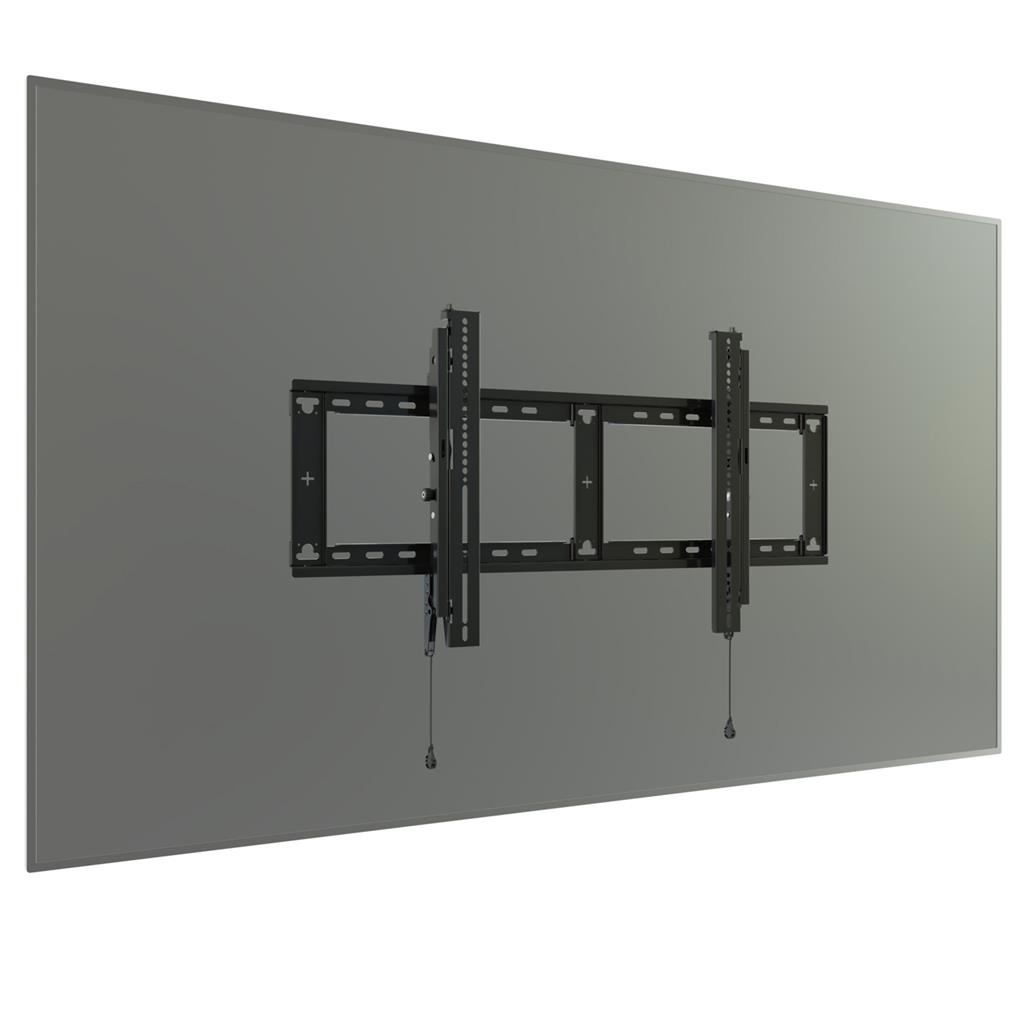

UL and TUV safety standards approved. The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals..
Mounting. Maximum weight capacity. 90.7 kg.
Minimum screen size. 109.2 cm (43"). Maximum screen size.
2.18 m (86"). Mounting type. Wall.
Maximum VESA mount. 915 x 450 mm. Number of displays supported.
