Low profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements. Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included. Open wall plate allows for flexible positioning around power and data wall boxes.
Supports display mounting patterns up to 960 x 450 mm. Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen. Easy access magnetic quick-store release pullcords.
Kickstand for easy access to power and signal connections. Theft deterrent security options (not included). UL and TUV safety standards compliant.

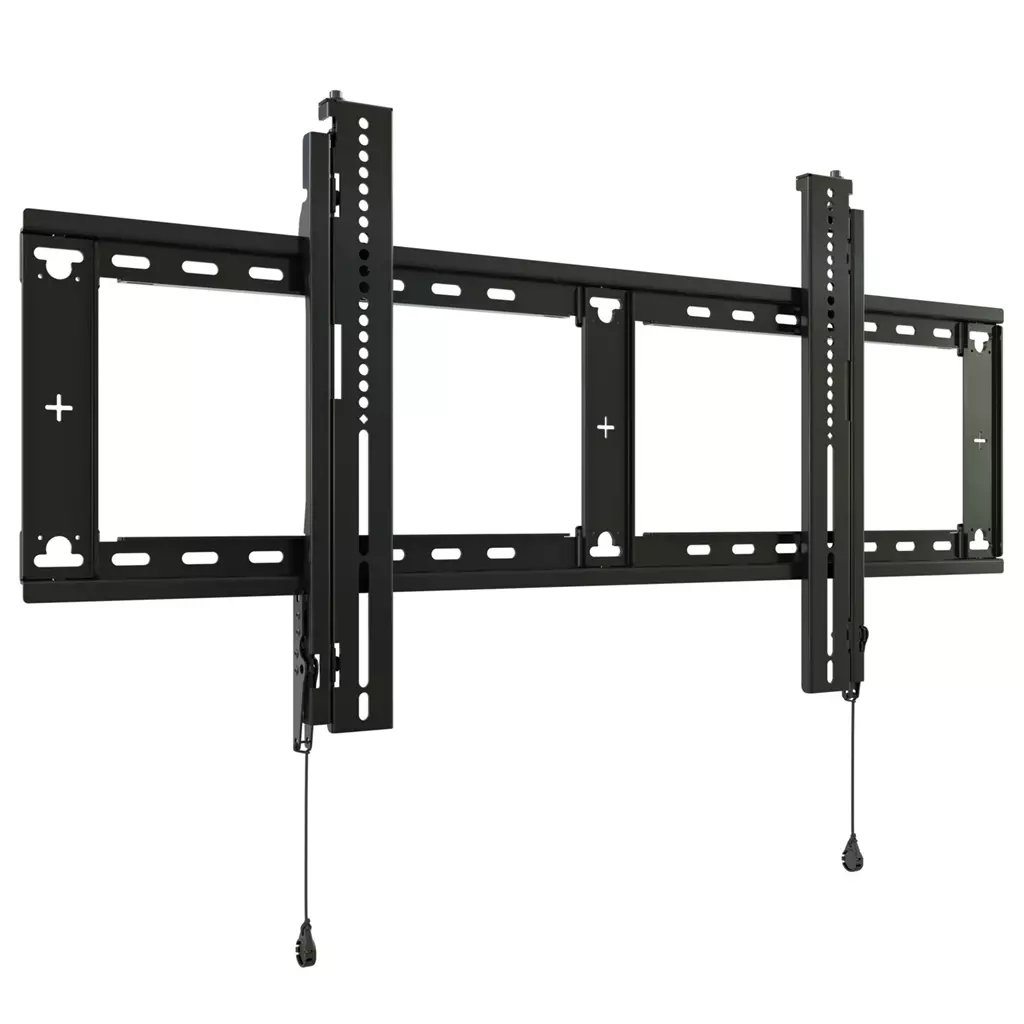

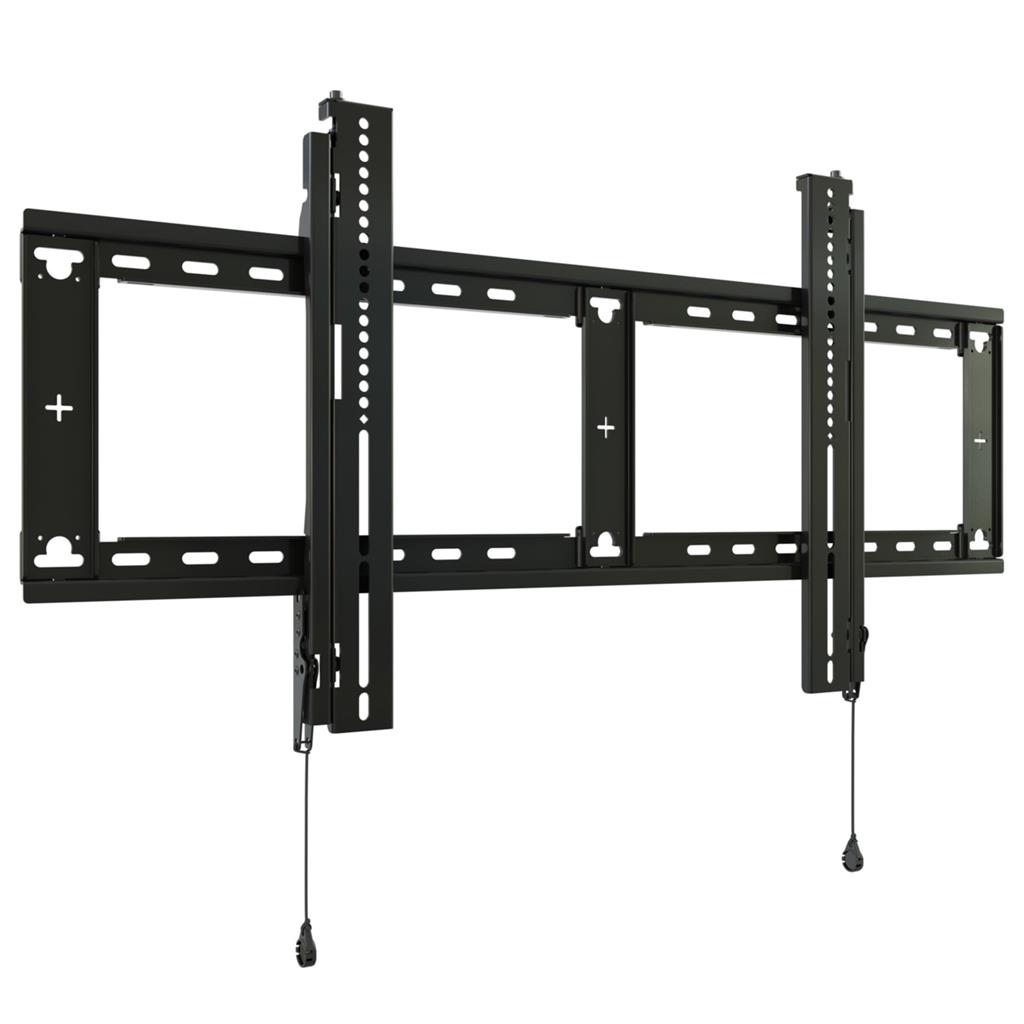

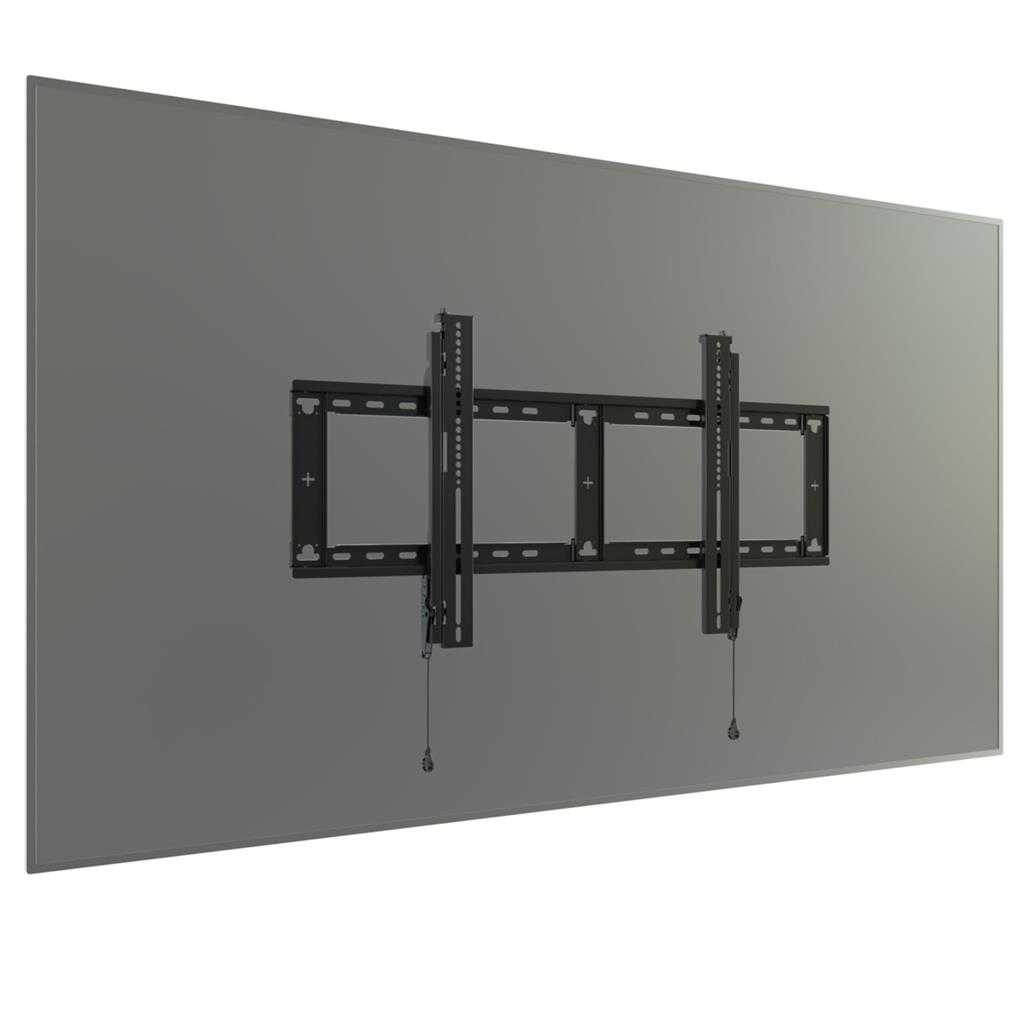

The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.. Mounting.
Maximum weight capacity. 90.7 kg. Minimum screen size.
109.2 cm (43"). Maximum screen size. 2.18 m (86").
Mounting type. Wall. Maximum VESA mount.
960 x 450 mm. Number of displays supported. 1.
