x16 PCIe Gen 4 Host Interconnect. Up to 8 x4, 16 x2, or 32 x1 NVMe SSD connect. SRIS and REFCLK support.
SFF-9402 compliant connector pinout. Downstream port containment. Read tracking.
Surprise Add and Remove. Synthetic Hierarchy generation. FRU Inventory support.

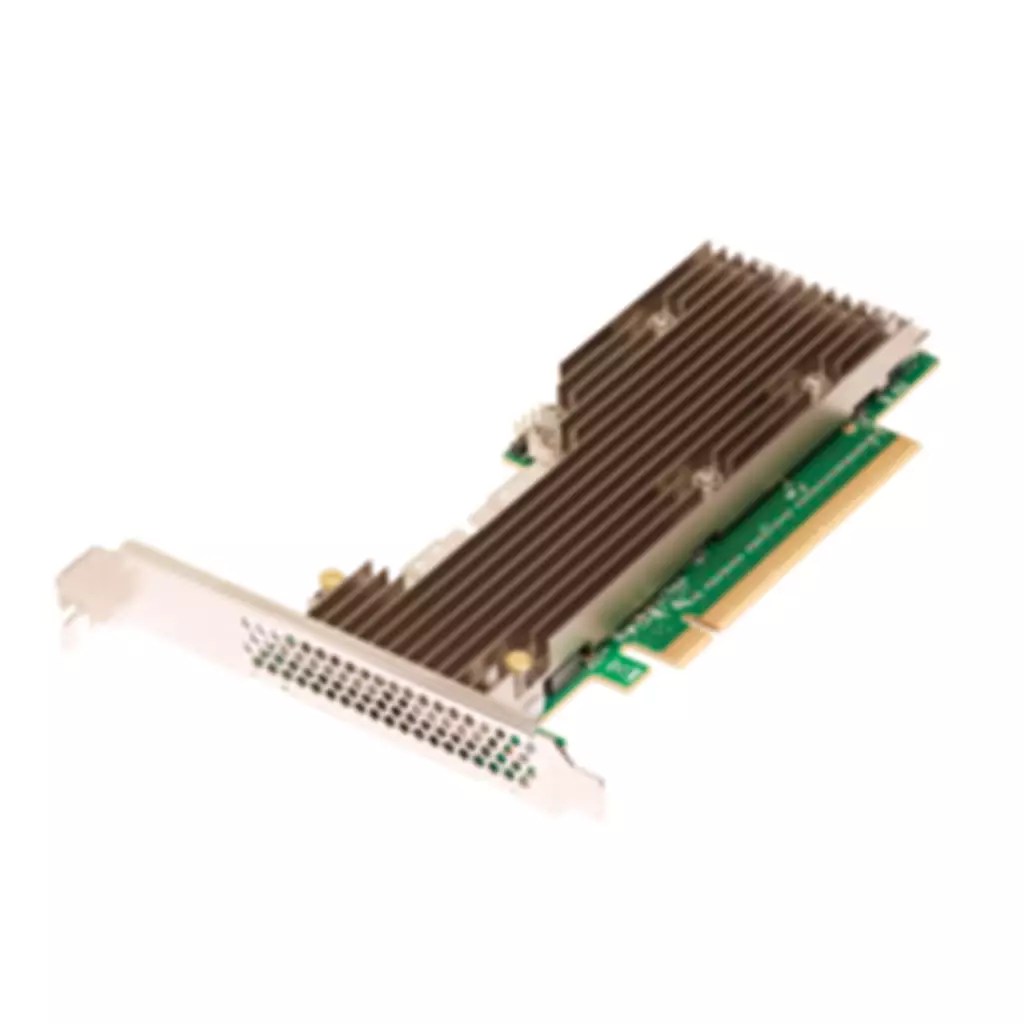

Hardware Secure Boot. LED Management. The P411W-32P adapter leverages Broadcom’s world-class board design, PEX88048 PCIe Gen 4.0 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods.
Similar to Broadcom MegaRAID adapters and HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features.. Ports & interfaces. Host interface.
PCIe. Output interface. SFF-8654.
Expansion card form factor. Low-profile. Design.
Internal. Yes. Product colour.
