Connects 2 HDMI sources to any 2 HDMI displays. Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane).
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR. Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio. Supports Dolby True HD and DTS HD Master Audio.
Auto switching – automatically detects and switches to a new source once connected (Default: off). Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control. Long-distance transmission up to 5 meters.
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control. EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens. Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections.
All metal casing. Firmware upgradable. Rack mountable.

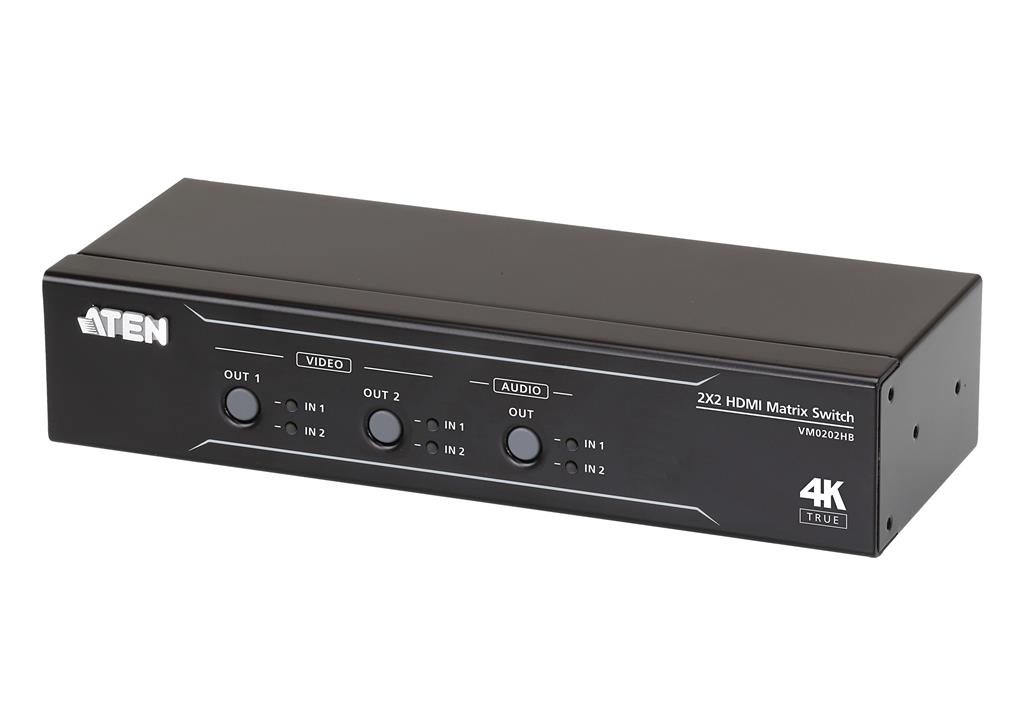

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications..
The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease.

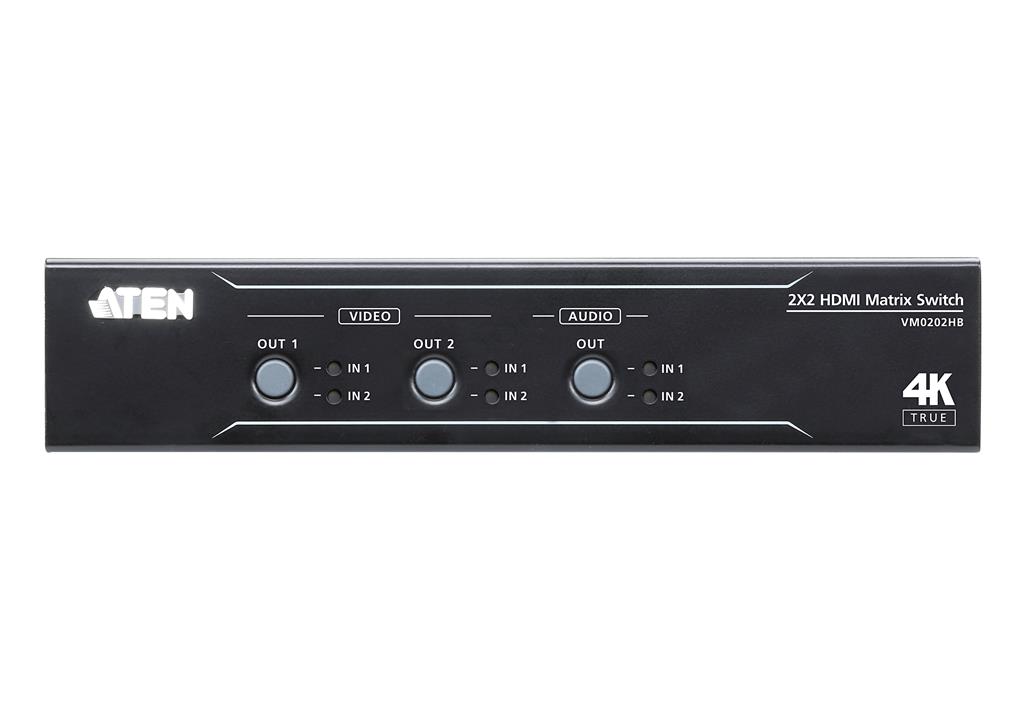

For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.. Features. Supported resolutions.
