Local and Remote Units connect at distances up to 300 m using Cat 5e cable. Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles. Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance.
Built-in ASIC for greater reliability and compatibility. Auto Signal Compensation (ASC). RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners.
Sun/Mac keyboard support and emulation*. Audio Enabled - supports stereo speakers and microphone. USB overcurrent detection and prevention.
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection. High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m).
Superior Audio - no loss in audio quality at 300 m. Supports Wide Screen formats **. Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B.
Hot pluggable. Rack mountable. Easy to install - no software required - connecting cables to the devices is all it takes. * 1.
PC keyboard combinations emulate Sun/Mac keyboards. 2. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator..

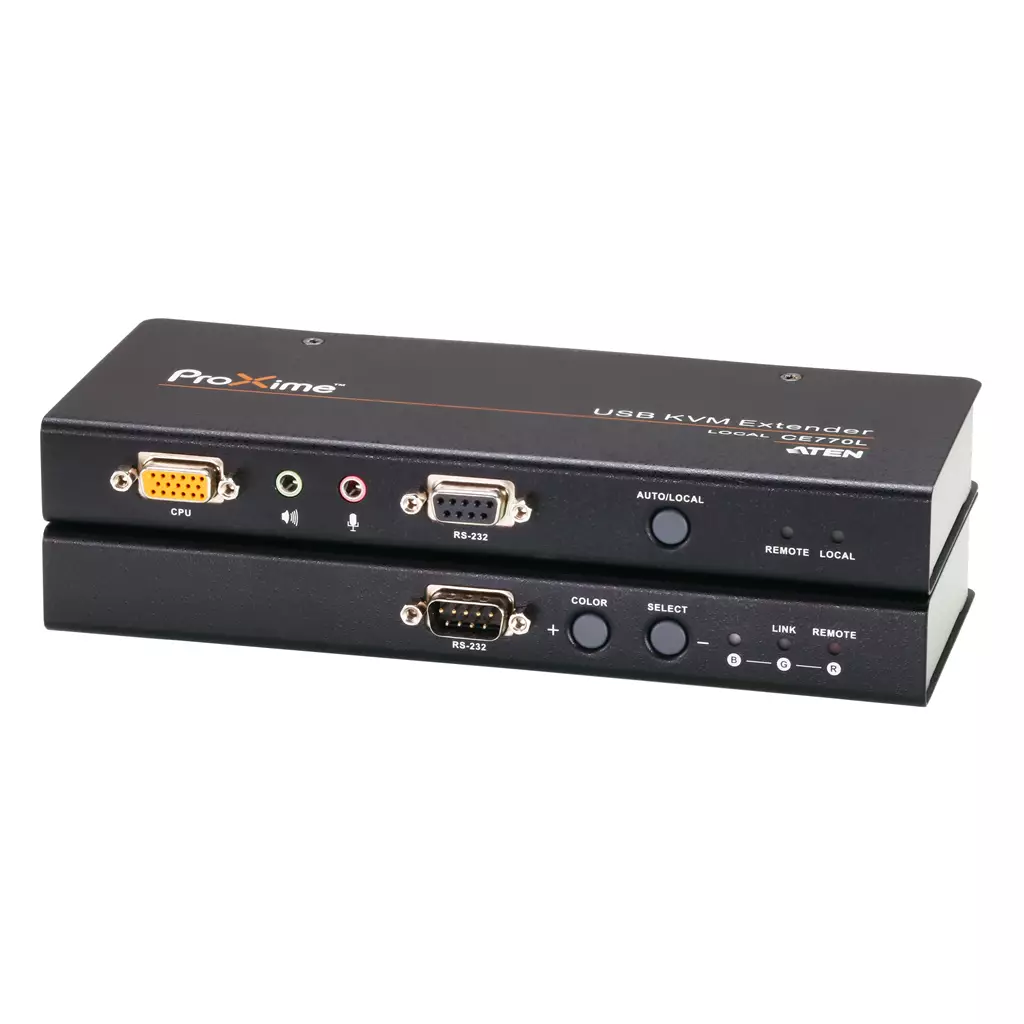

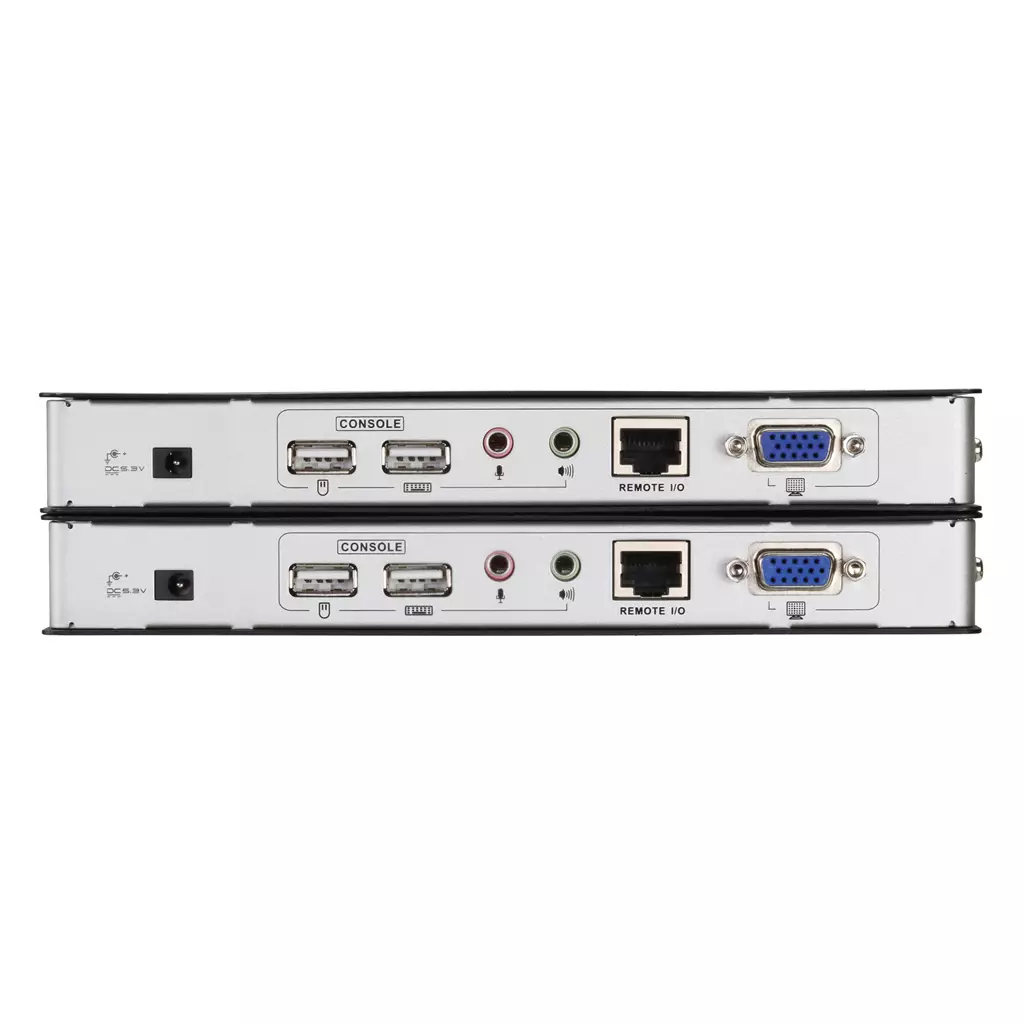

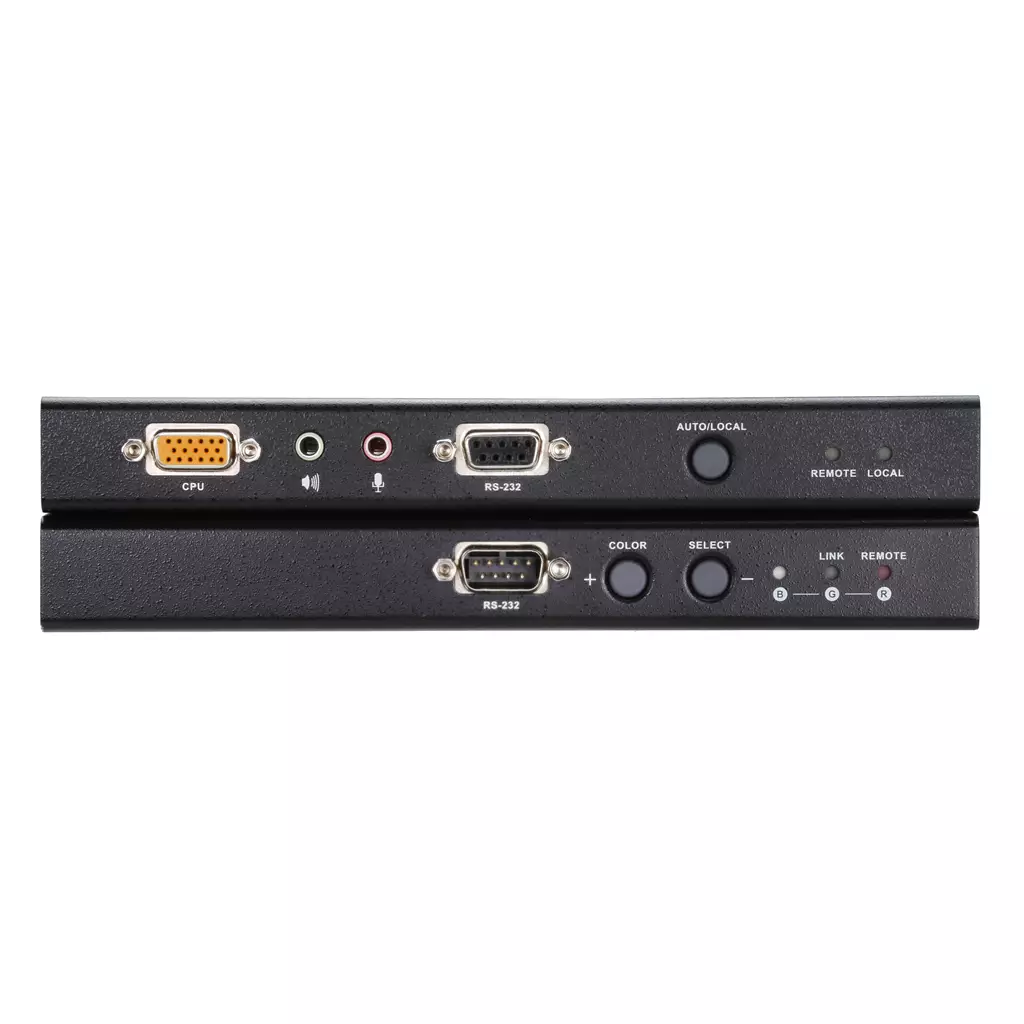

The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console.. The CE770 supports RGB delay tuner to manually synchronize the RGB signals.
