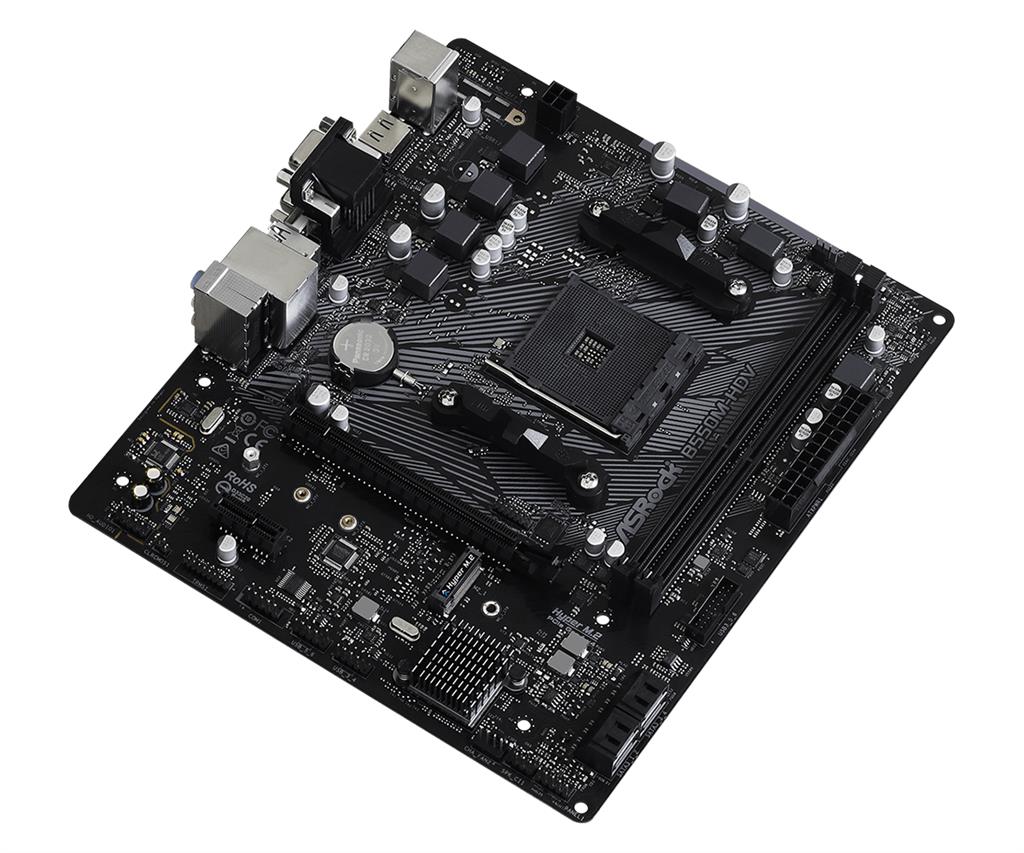

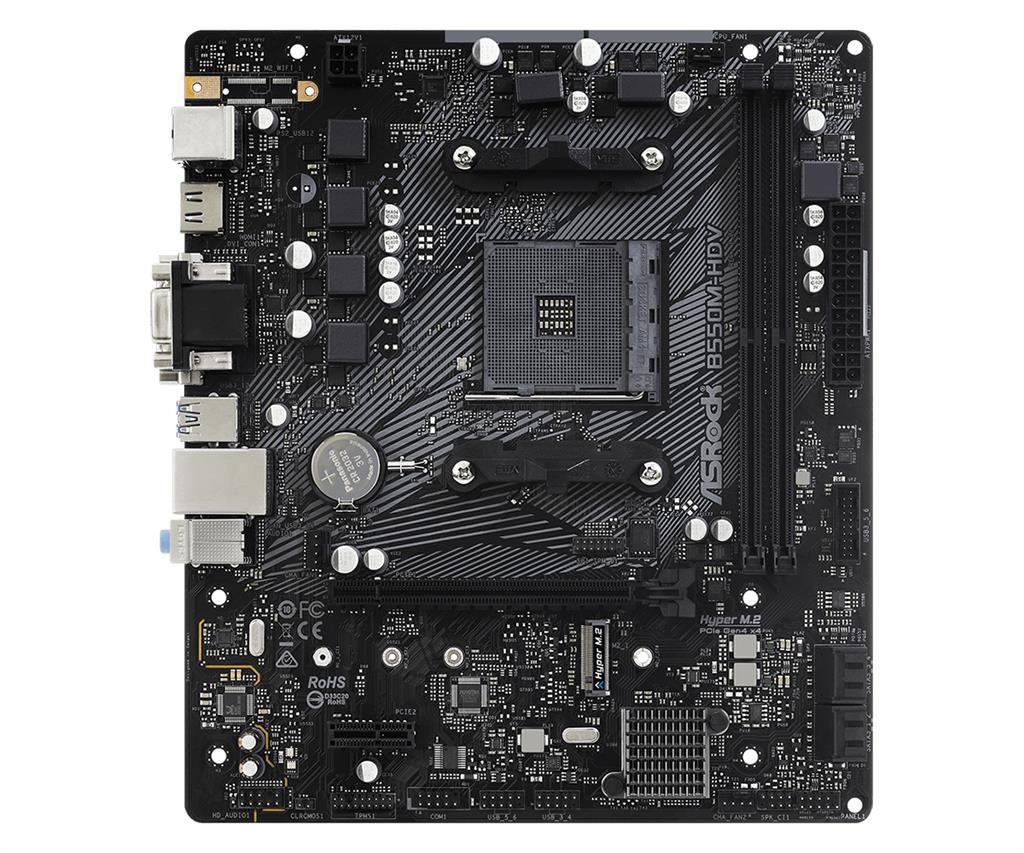

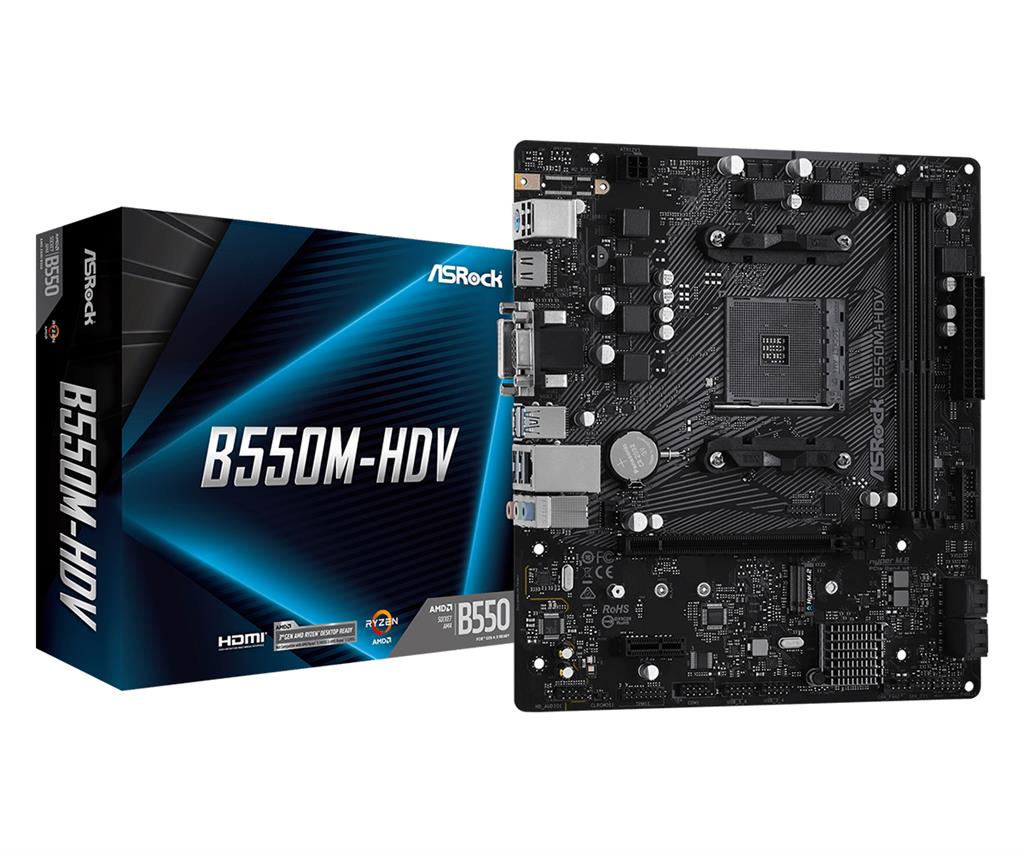

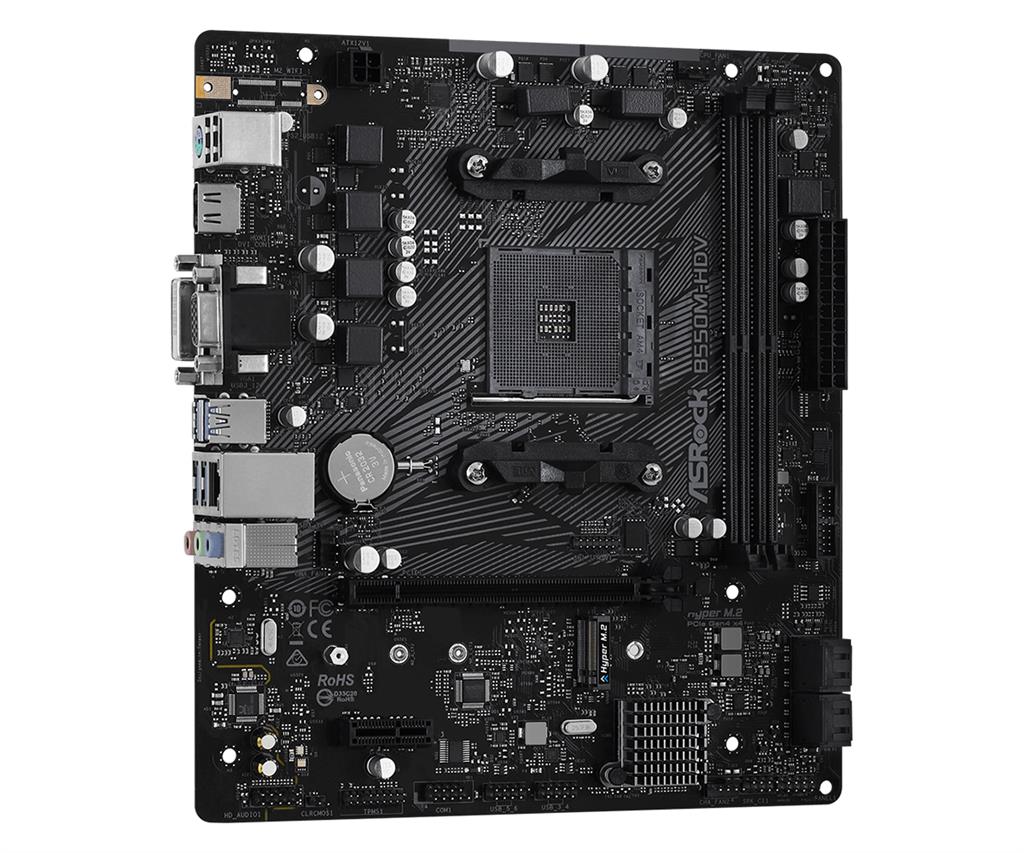

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors. 6 Power Phase Design. Supports DDR4 4733+ (OC).
1 PCIe 4.0 x16, 1 PCIe 3.0 x1. Graphics Output Options: HDMI, DVI-D, D-Sub. 7.1 CH HD Audio (Realtek ALC887 Audio Codec).
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3). 6 USB 3.2 Gen1 (2 Front, 4 Rear). Gigabit LAN.
6 Power Phase Design. Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well..
Premium 50A Power Choke. Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.. Hyper M.2 (PCIe Gen4 x4).
HDMI 4k @60Hz. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry..
3 Graphics Outputs. Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo.
Please check CPU support list from each motherboard webpage.. Full Spike Protection. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately.
