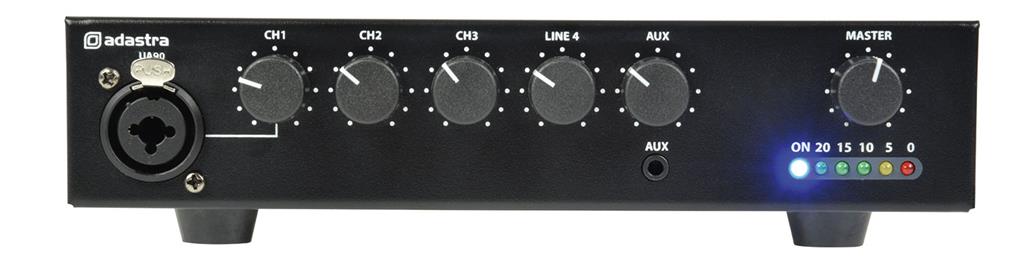

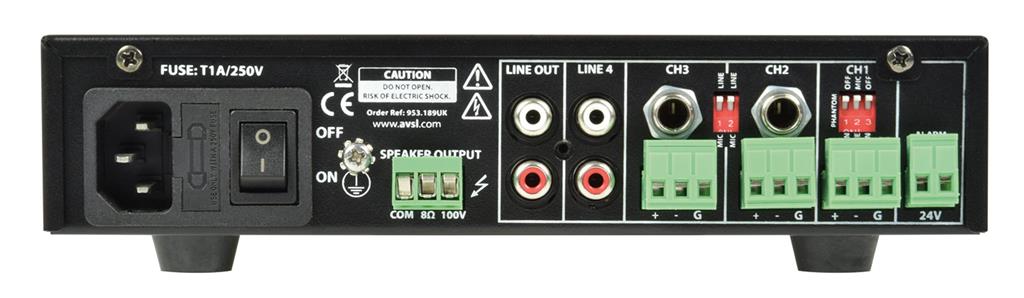

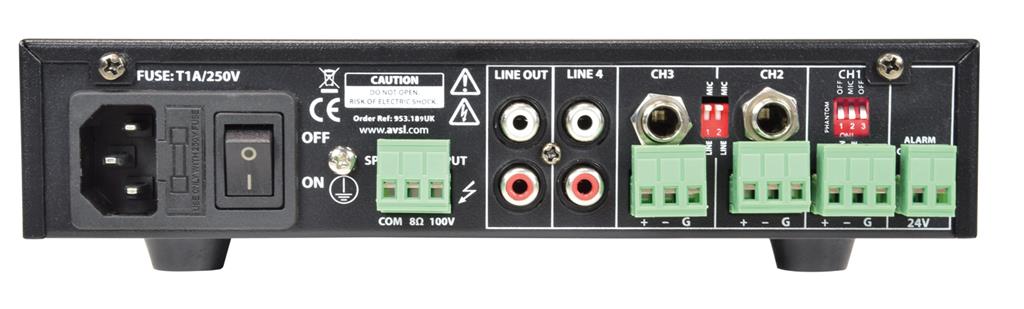

UA Series Compact 100V Mixer-Amplifiers100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel.
Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.Details24V fire alarm mute contactsSupplied with hardware for rack-mounting 2 units5 input channels100V line or 8 Ohms operationSwitchable +20V phantom power CH1Global 2-band EQ on 120W and 240W modelsSpecificationsAmplifier : construction Class D + transformer outputInputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)Line output 2 x RCA (mono)Speaker output Euroblock terminals: 100V / 8 Ohms / ComMute 24V relay contactsTHD
